Using the LasGoo LG-3D Laser for Setting Square Lines on Construction Sites

Accurate layout work is the foundation of any successful construction project. When setting out rectangular concrete bases, having the right tools can make the job faster, more precise, and less stressful. In this post, I’ll share my experience using the LasGoo LG-3D Laser to set square lines for a concrete base, and why its green laser is a game-changer on construction sites.

The Task: Setting Out Shutter Lines for a Concrete Base

The objective was straightforward: I needed to set out the outside shutter lines for a rectangular concrete base. To begin, I used a total station to mark the corner positions of the base. These positions were pinpointed with Hilti nails for accuracy and stability. The long side of the base was already set, leaving the challenge of marking the short side squarely to the long side.

With one corner on the short side needing to be marked against an existing concrete wall, I needed a precise, reliable method to project a line across the two Hilti nails to the wall. Enter the LasGoo LG-3D Laser.

Disclaimer: This site, and in particular this page, contains affiliate links to products. You are under no obligation to but if you visit and buy something from their site from a link on this site, we will receive a small commission, the price you pay will remain the same. This helps to keep this website running and your help is appreciated.

Using the LasGoo LG-3D

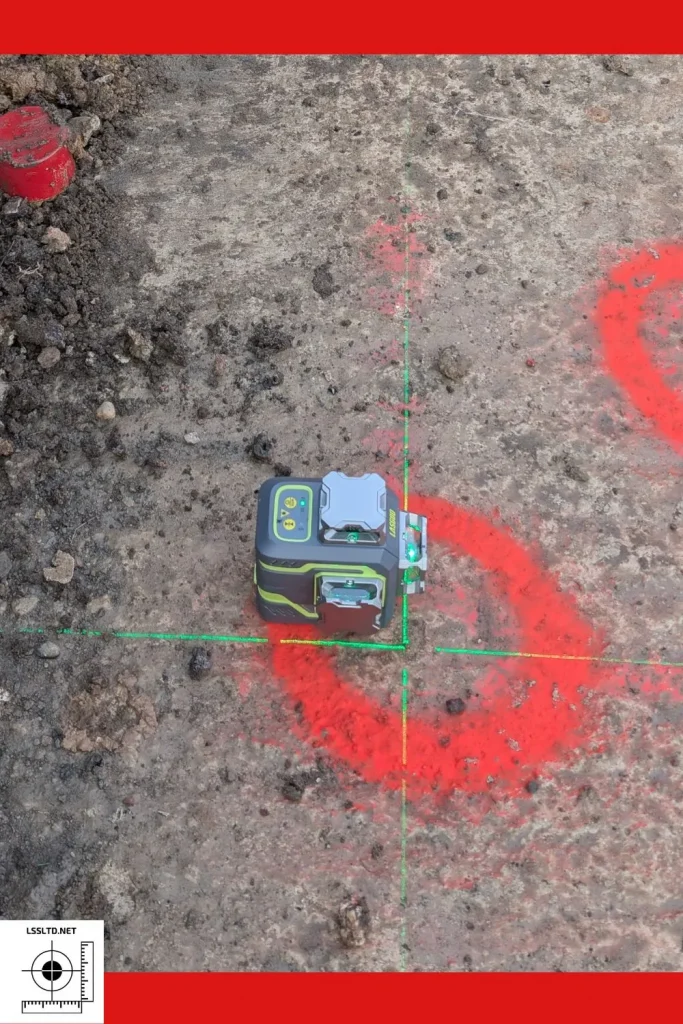

To tackle the task, I positioned the LasGoo LG-3D directly over one of the Hilti nails. Lining it up with the Hilti nail at the far end of the long side (11.3m away), I was able to project a straight green laser line across the base. The green line intersected the existing concrete wall, allowing me to mark the location of the final corner for the short side of the base.

The green laser line projected by the LasGoo LG-3D was bright and clear, even over the 11.3m distance. To enhance visibility, especially in bright daylight, I used the green target card provided with the laser. This made it easy to confirm alignment and mark the corner accurately.

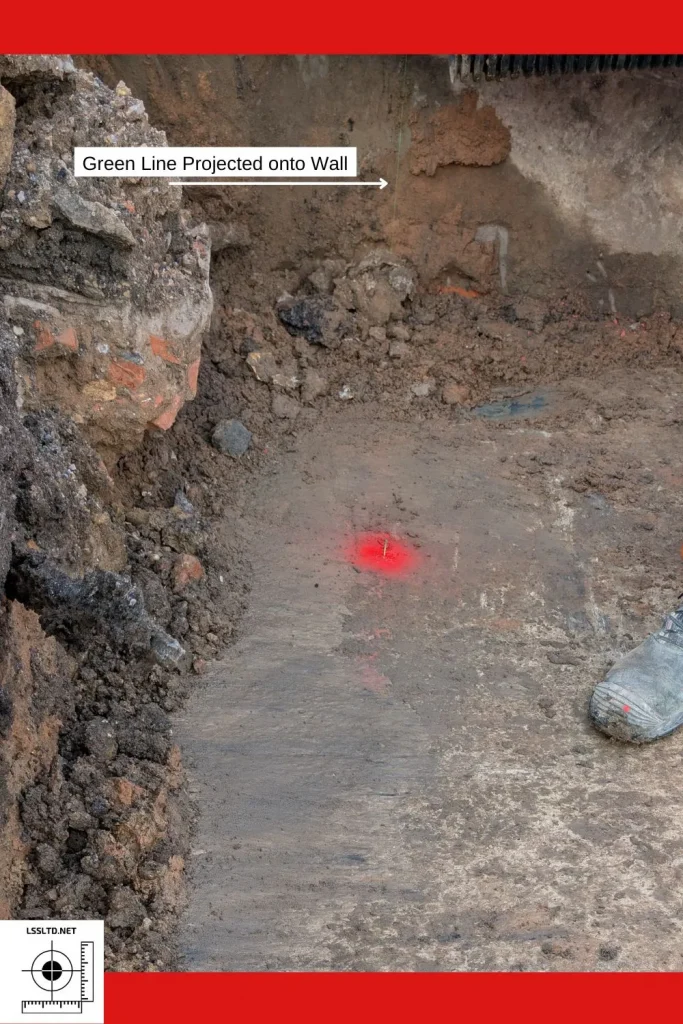

At a shorter distance of 2.4m from the laser to the concrete wall, the green laser was perfectly visible without additional tools. Once the line was confirmed, I marked the point on the wall permanently, ensuring an accurate and durable reference for the shutter lines.

Why Green Lasers Are Superior on Site

One of the standout features of the LasGoo LG-3D is its green laser beam. Compared to traditional red lasers, green light is far more visible to the human eye, especially outdoors or in well-lit environments. This increased visibility reduces guesswork and minimizes the risk of errors, particularly when working over longer distances like the 11.3m span I tackled.

While setting the laser, I also noticed that the green beam was particularly easy to see against the orange Hi-Viz workwear that is mandatory on site. This contrast made it significantly easier to align the laser, even when multiple workers were in the field of view. The bright green line stood out clearly against their vests and jackets, speeding up the process of getting everything aligned perfectly.

Green lasers work better in challenging lighting conditions and are often easier to spot against various surfaces, including concrete and reflective materials, making them ideal for construction professionals.

Key Takeaways

Using the LasGoo LG-3D Laser made setting square lines for this concrete base efficient and precise. Here’s a quick recap of the process and tips:

1. Initial Setup: Mark corner points with a total station and Hilti nails for accuracy.
2. Laser Alignment: Position the laser over one nail and align it with the opposite nail to project a straight line.
3. Green Laser Visibility: Use the provided green target for better visibility over long distances, and take advantage of the inherent brightness of green light for clear markings.
4. Accuracy: Mark permanent reference points for a durable guide to shutter placement.

The LasGoo LG-3D is not only reliable but also an incredibly practical tool for professionals in the construction industry. Its green laser technology ensures that you can achieve accurate results without struggling to see the beam, even in challenging conditions.

Conclusion

When accuracy and efficiency are non-negotiable, the LasGoo LG-3D Laser proves its worth on site. Whether you’re working on small layouts or large-scale projects, its green laser beam and practical design make it an invaluable tool for setting square lines, projecting levels, and ensuring alignment.

That said, while the LasGoo LG-3D is incredibly handy for tasks like this, it’s important to recognize its limitations. It’s not designed to be as site-tough or cover the long distances that a rotating laser can handle. For larger-scale projects or harsher site conditions, a rotating laser might be the better choice. The right tool for the right job is key. The LasGoo LG-3D is most suited for smaller jobs and DIY applications, where portability and ease of use are priorities.
