Why you want a laser levelled patio.
Patios are usually level. And when building a patio, you will want to ensure it is level. A level patio means that your patio table and chairs will not rock and when you are sitting down enjoying life and relaxing. No-one wants a table that tips from side to side when you pick up your drink. And you do not want to feel like you are going to fall off your chair.
This laser level guide should help you choose the right laser level for building your patio square and level. If that is what you want. But it will also give you some guidance if you want something fancier or with a slope.
What criteria does the laser level need to have for your patio?
When building a patio there are a few things you need to ensure that you get the patio built right. Patios are usually built level, so you will need to be able to accurately level across the entire patio. Patio slabs are nearly always square in shape, being able to know a right angle is paramount, so that the patio can be square to building or another feature.
The minimum tasks that you want the laser level to perform is
- To provide a level (horizontal) line.
- To provide 90degree angle (vertical) lines.
These two requirements should enable most patios to be constructed perfectly. If you have other requirements for your patio then you will need to add to the list above in selecting your laser level.
Disclaimer: This site, and in particular this page, contains affiliate links to products. You are under no obligation to but if you visit and buy something from their site from a link on this site, we will receive a small commission, the price you pay will remain the same. This helps to keep this website running and your help is appreciated.
Consider what you are going to be using your patio for.
You may have several requirements for your new patio. And this will determine whether it needs to be level. For example, I have just had an inflatable hot tub, and this requires a level patio. For a hot tub you not only need a level patio, but it also needs to be strong. I would suggest screeding out a sharp sand base, laying the slabs and then filling the gaps with a very fine sand. Some hot tubs will weigh over 1000kg when filled with water.
Watch the video below for a demonstration on how to do screeding. This is for block paving, but your blocks would be slabs.
Which laser levels would I recommend?
I usually use high end rotating laser levels on large construction sites, like the Leica Rugby 620 or the Topcon RL-H5A. But these are overkill for laying a patio. But I would not recommend lasers within a spirit level as these will be tricky to use for laying a patio.
For laying patios, I would like a laser level that I can sit on the ground, close to my work area. I would also want it to project laser level lines (not dots) so that I can check the level at several points without moving the laser level.
I would also want it to be self-levelling. This means that I can set the laser level unit on the ground and the laser beam projected is level, without me having to adjust it. Most laser levels do this but be careful as some do not.
The best laser level for patio laying.

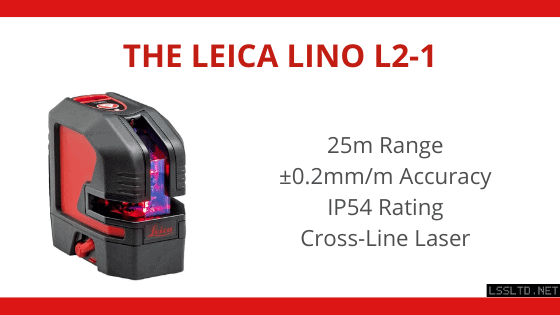

The Leica Lino L2 is the most advanced laser line leveler on the market. which makes it the best laser level for laying any patio..
With its high-precision optics, it ensures outstanding laser line visibility up to 25 meters, depending on lighting conditions. Its exceptionally long horizontal and vertical laser lines are projected to floors, walls and ceilings at more than 180 degrees. The Leica Lino L2 automatically adjusts its positioning if it is slightly out of level up to ± 4°. Outside this limit a visual alert is activated to prevent errors.
It has a 25m range which is the best out of the three recommended laser levels here. And it is the most accurate at 0.2mm/m, so at 10m away the laser will be within 2mm of the unit.
The Leica Lino L2-1 will withstand the rigours of outdoor use as it has an IP54 rating This means that it is partially protected from dust that may harm the Lino L2-1 and can also withstand splashes of water from all directions.
If you want to know about the different IP ratings that are achieved by products take a look at this chart which details them. It is on the website at https://www.enclosurecompany.com/ip-ratings-explained.php#:~:text=IP%20(or%20%22Ingress%20Protection%22,%2C%20dirt%20etc)%20and%20moisture.
Leica have been producing these laser products for years. They have numerous years’ experience in producing accurate laser levels. Leica is one of the laser level manufacturers that the professional use. If you can afford the Leica Lino L2, you will not be disappointed.
If you want to read a full review of the Leica Lino L2-1 before buying, then there is one here on this website. Just click on the image below to read it.
This device will help you get your work done faster with less time wasted by ensuring that all your levels are perfect every time! You’ll never have to worry about wasting time adjusting levels again or waiting for someone else who can do it for you because now you can do it yourself in seconds! It also has an easy-to-read display so there’s no guesswork involved when leveling any surface – just point and level!
Convinced that the Leica Lino L2-1 is the right laser level for you. Check out the price and availability on Amazon. You can purchase a leica lino l2-1 today from the Amazon website!
- Innovative Li-Ion concept for long operating time and extra-bright laser lines
- Li-Ion battery can be replaced with Alkaline batteries or a direct power supply so that the laser is always ready for use
- With the practical magnetic adapter, the laser can be quickly set up and aligned
- The warning function prevents serious errors by flashing the laser lines if the laser is not aligned anymore
- The robust, dust and splash water protected (IP54) housing protects the laser during the rough day-to-day work on construction sites
The value laser level for patio laying.

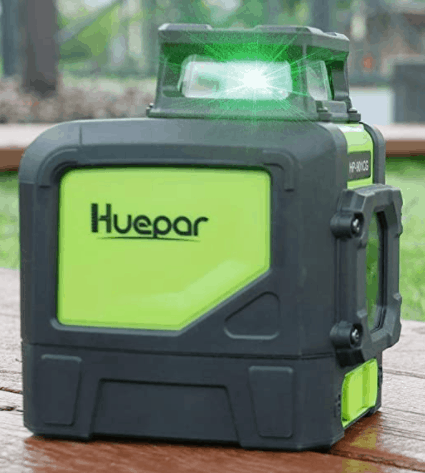

If you can’t justify spending the money on the Leica Lino L2-1, then the best value alternative has to be the Huepar 901CG Laser Level. The Huepar 901 CG uses a green laser beam. This makes it much easier to see in most cases. It is also a 360degree laser level so can be set up in the centre of your patio build. The accuracy is not as great as the Leica Lino, but at 3mm at 10m it is still accurate enough for the task of laying a patio.
The Huepar 901CG will also withstand the rigours of outdoor use as it has an IP54 rating This means that it is partially protected from dust that may harm the Huepar 901CG and can also withstand splashes of water from all directions.
Huepar laser levels have been around for several years. They have always produced quality laser levels for a fair price. They just have not been the choice of the professional.
Think the Huepar 901CG is the laser level for you? Check out the current price and availability on Amazon now.
- 【360 DEGREE HORIZONTAL LINE】: This laser tool projects one 360° horizontal line and one 130° large fan angle vertical laser line.The 360° horizontal line makes it ideal for installing chair rail molding, wall paper, windows, drapery rods, and more. Together with the vertical line, the laser tool features plumb cross line to accurately guide a range of DIY projects. This tool is perfect for leveling, alignment and layout applications.
- 【GREEN BEAM&OUTDOOR PULSE MODE】 :This self-leveling cross line laser level adopts ultra bright green beam with an accuracy of ± 1/9 inch at 33Ft(3mm/10m). With pulse mode, the laser working range can be extended up to 196Ft with Huepar Line Laser Receiver in bright light or outdoor conditions. We recommend Huapar laser detector LR-5RG(Asin: B07L59G72J) or LR-6RG(Asin: B07GVC2XD9).
- 【SWITCHABLE LASER LINE】: The one 360° horizontal and vertical laser lines can be selected individually depends on job-site applications. Withsmart pendulum system, this lasertool self levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.
- 【MAGNETIC BRACKET&DURABLE DESIGN】:The included strong magnetic pivoting baseenables to be attached to metal surfaces and turn the laser level around at 180°. The laser tool also offers 1/4"-20 mounting threads to suit for standard tripod or laser pole mounts. Huepar 901CG Laser Level is covered by TPR soft rubber for shock resistant, IP54 waterproof and dustproof, shockproof, wear resistant, impact resistance.
- 【KIT CONTENTS&WARRANTY】: This laser level tool kit includes 901CG laser level tool, 180° strong magnetic pivoting base, 4 AA batteries, portable carrying bag, laser target. Customer can enjoy 12 months limited warranty but up to 24 months longer warranty if you become a royal customer through the product registration (Offered on the package box).
Disclaimer: This site, and in particular this page, contains affiliate links to products. You are under no obligation to but if you visit and buy something from their site from a link on this site, we will receive a small commission, the price you pay will remain the same. This helps to keep this website running and your help is appreciated.
Cheapest laser level for patio laying.

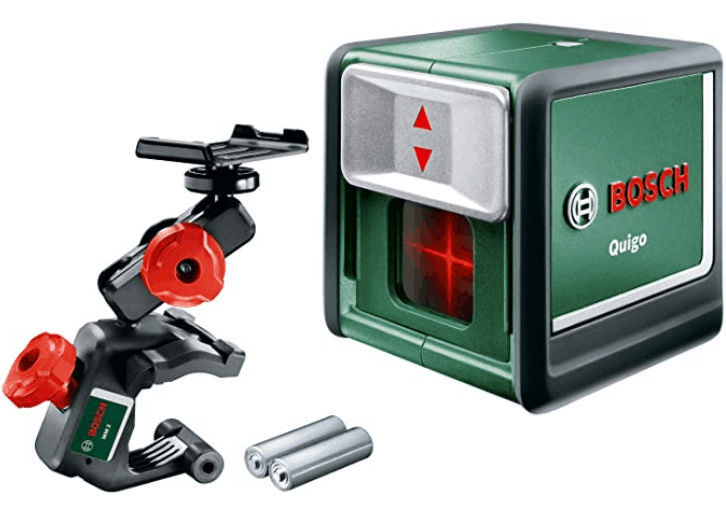

If you can not afford either of the above two laser levels then your cheapest option will be the Bosch Quigo Line Laser. The Bosch Quigo laser level only has a range of 10m. This is the shortest of the lot. The accuracy is not great either at 8mm at 10m from the Quico unit. It does have a useful clamp included with the kit.
The Bosch Quigo is a self-levelling laser level. Just set it up within 4degrees of horizontal and the laser will level itself. The Bosch Quigo may well be easier and more accurate to use than a traditional spirit level.
The Bosch Quigo is more aimed at interior applications than outdoor ones. So if you are looking to use it primarily indoors then this could be a good choice.
Check out the current price and availability of the Bosch Quico on Amazon here.
- The cross line laser Quigo – for precise alignment; compact inspection camera with high-grade image capture
- Inclined lines can be used by tilting the tool
- Simultaneously projects one horizontal and one vertical laser line – always 100% straight
- Flexible positioning thanks to MM2 universal clamp which comes complete with the tool
- Items included: Quigo 3, 2 x AAA batteries, MM2 universal holder, quick assembly plate, cardboard box (3165140836074)
Disclaimer: This site, and in particular this page, contains affiliate links to products. You are under no obligation to but if you visit and buy something from their site from a link on this site, we will receive a small commission, the price you pay will remain the same. This helps to keep this website running and your help is appreciated.
Choose the right laser level for you.
One thing is for sure, once you have bought one of these laser levels is that you will be using it for other jobs around the house too. This should be considered in your purchase decisions. Any job that you would use a spirit level for, you could use one of these laser levels for.
